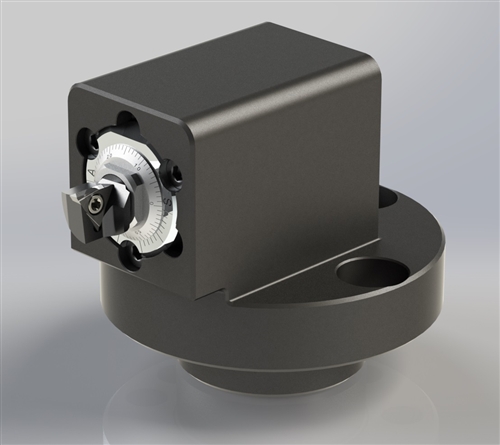

Locating Pin Connection.
2" inch Coupling Diameter.
TCHX06 Insert.
0° Lead Angle.
Boring Bar Head.

Price: Contact Your Distributor

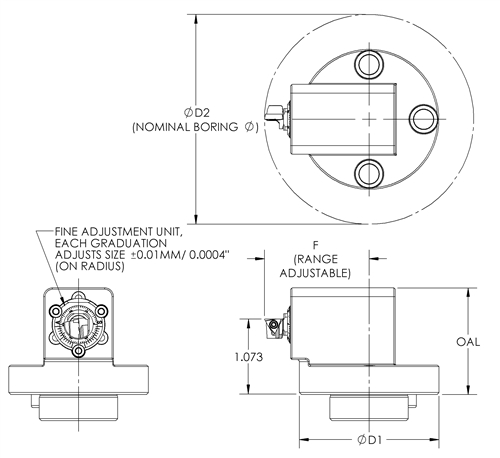

A1 : Lead Angle Degree
D1 : Coupling Diameter
D2 : Minimum Bore
F: Center-line to Tip of Insert
OAL: Overall Length


Product Code: 113831
Qty:

Description

• TCHX06 Insert
• 0° Lead Angle
• Locating Pin Connection
• 2" Coupling Diameter
• 4" Nominal Boring Diameter
• 1.995" F Dimension
• 1.57" OAL
• Insert cartridge has 5mm (0.197”) total radial adjustment range
• N/A Shim
• N/A Shim Screw/Lock Pin
• N/A Insert Clamp
• N/A Insert Clamp Screw
Features
  • Adapts to Industry Standard Bars. Replaceable Hardware Readily Available.
  • Heat Treated Alloy Steel with Black Oxide Treatment for Corrosion Resistance.
